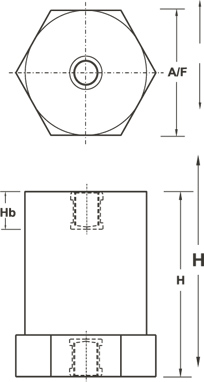

| Code |
Height
H mm |
Insert |
Dimensions |
Nominal Voltage
(AC/DC) |
| |
|
|
A/F mm |
Hb mm |
|
| 20RH620 |
20 |
M6 |
20 |
5 |
800/1100 |
| 20RH625 |
25 |
M6 |
20 |
7 |
1000/1400 |
| 30RH830 |
30 |
M8 |
30 |
9 |
1200/1600 |
| 30RH840 |
40 |
M8 |
30 |
12 |
1600/2200 |
| 30RH1030 |
30 |
M10 |
30 |
9 |
1200/1600 |
| 30RH1040 |
40 |
M10 |
30 |
12 |
1600/2200 |
| 40RH1030 |
30 |
M10 |
40 |
9 |
1200/1600 |
Material: DMC (Dough Moulding Compound)
Insert: Steel (zinc passivated)
Working temperature: (-) 40˚C to 135˚C
Mouting arragement:
