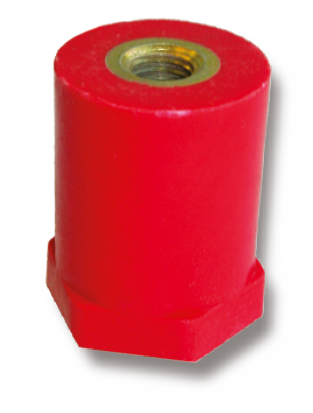

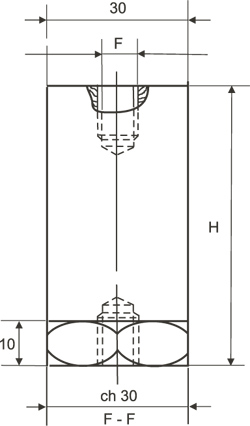

Standoff Insulator CS/P list of availabe types
| Code |
Heigh
H mm |
Insert
mm |
Operating voltage
V |
| CS/P 30 |
30 |
M6 |
750 |
| |
|
M8 |
|
| |
|
M10 |
|
| CS/P 35 |
35 |
M6 |
1000 |
| |
|
M8 |
|
| |
|
M10 |
|
| CS/P 40 |
40 |
M6 |
1000 |
| |
|
M8 |
|
| |
|
M10 |
|
| CS/P 45 |
45 |
M6 |
1000 |
| |
|
M8 |
|
| |
|
M10 |
|
| CS/P 50 |
50 |
M6 |
1500 |
| |
|
M8 |
|
| |
|
M10 |
|
| CS/P 55 |
55 |
M6 |
1500 |
| |
|
M8 |
|
| |
|
M10 |
|
| CS/P 60 |
60 |
M6 |
1500 |
| |
|
M8 |
|
| |
|
M10 |
|
| CS/P 65 |
65 |
M6 |
1500 |
| |
|
M8 |
|
| |
|
M10 |
|
| CS/P 70 |
70 |
M6 |
1500 |
| |
|
M8 |
|
| |
|
M10 |
|
Material: Polyglass polyester
Operating temperature: -40°C ~ +130°C
Fire reaction / Class: UL94 – VO; HL2; EN 45545-2
Breaking charges: +/- 10%
| Type |
CS/P30 |
CS/P40 |
CS/P50 |
CS/P60 |
AC sufrace flashover voltage
kV |
8 |
8 |
10 |
15 |
AC internal flashover voltage
kV |
20 |
25 |
35 |
35 |
Tensile stress
DN |
900 |
900 |
900 |
900 |
Cantilever sterss
DN |
450 |
300 |
200 |
150 |
Compressive sterss
DN |
4000 |
4000 |
4000 |
4000 |
Twisting stress
DN x mm |
1,03-2,6 |
1,3-2,6 |
1,3-2,6 |
1,3-2,6 |
1DN~1Kg
Jeśli masz problem z wybraniem odpowiedniego izolatora, skontaktuj się z nami. Oferujemy Ci również dobór izolatorów.
