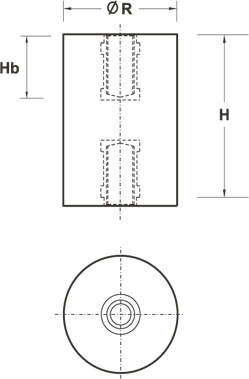

| Code |
Height
H mm |
Insert |
Dimensions |
Nominal Voltage
(AC/DC) |
| |
|
|
R mm |
Hb mm |
|
| CY3030(M6) |
30 |
M6 |
30 |
9 |
1200/1600 |
| CY3030(M8) |
30 |
M8 |
30 |
9 |
1200/1600 |
| CY3030(M10) |
30 |
M10 |
30 |
9 |
1200/1600 |
| CY3040(M6) |
40 |
M6 |
30 |
12 |
1600/2200 |
| CY3040(M8) |
40 |
M8 |
30 |
12 |
1600/2200 |
| CY3040(M10) |
40 |
M10 |
30 |
12 |
1600/2200 |
| CY3050(M6) |
50 |
M6 |
30 |
12 |
2000/2800 |
| CY3050(M8) |
50 |
M8 |
30 |
17 |
2000/2800 |
| CY3050(M10) |
50 |
M10 |
30 |
17 |
2000/2800 |
| CY3060(M6) |
60 |
M6 |
30 |
12 |
2400/3300 |
| CY3060(M8) |
60 |
M8 |
30 |
17 |
2400/3300 |
| CY3060(M10) |
60 |
M10 |
30 |
17 |
2400/3300 |
| CY4040(M8) |
40 |
M8 |
40 |
12 |
1600/2200 |
| CY4040(M10) |
40 |
M10 |
40 |
12 |
1600/2200 |
Material: DMC (Dough Moulding Compound)
Insert: Steel (zinc passivated)
Working temperature: (-) 40˚C to 135˚C
Mounting Arrangement:
Support to Support Distance : Should not be more than 200 mm
