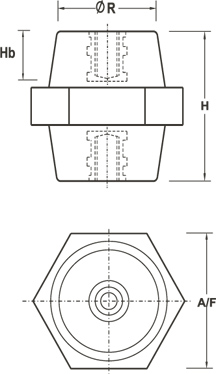

Hexagonal support insulator H list of available types:
| Code |
Height
H mm |
Insert |
Dimensions |
Nominal Voltage
(AC/DC) |
| |
|
|
A/F mm |
R mm |
Hb mm |
|
| H416 |
16 |
M4 |
14 |
11 |
3,5 |
640/800 |
| H420 |
20 |
M4 |
18 |
14 |
5 |
800/1100 |
| H620 |
20 |
M6 |
18 |
14 |
5 |
800/1100 |
| H625 |
25 |
M6 |
25 |
22 |
7 |
1000/1400 |
| H630 |
30 |
M6 |
32 |
24 |
9 |
1200/1600 |
| H830 |
30 |
M8 |
32 |
25 |
9 |
1200/1600 |
| H635 |
35 |
M6 |
32 |
26 |
12 |
1400/1900 |
| H835 |
35 |
M8 |
32 |
26 |
12 |
1400/1900 |
| H1035 |
35 |
M10 |
32 |
26 |
12 |
1400/1900 |
| H840 |
40 |
M8 |
39 |
31 |
12 |
1600/2200 |
| H1040 |
40 |
M10 |
38 |
30 |
12 |
1600/2200 |
| H845 |
45 |
M8 |
40 |
32 |
12 |
1800/2500 |
| H1045 |
45 |
M10 |
40 |
32 |
12 |
1800/2500 |
| H1050 |
50 |
M10 |
46 |
35 |
17 |
2000/2800 |
| H1250 |
50 |
M12 |
46 |
35 |
17 |
2000/2800 |
| H1060 |
60 |
M10 |
50 |
38 |
17 |
2400/3300 |
| H1260 |
60 |
M12 |
50 |
38 |
17 |
2400/3300 |
| H1065 |
65 |
M10 |
55 |
41 |
17 |
2600/3600 |
| H1265 |
65 |
M12 |
55 |
41 |
17 |
2600/3600 |
| H1070 |
70 |
M10 |
55 |
41 |
22 |
2800/3900 |
| H1270 |
70 |
M12 |
55 |
41 |
22 |
2800/3900 |
| H1075 |
75 |
M10 |
53 |
42 |
22 |
3000/4200 |
| H1275 |
75 |
M12 |
53 |
42 |
22 |
3000/4200 |
| H1076E |
76 |
M10 |
50 |
34 |
22 |
3000/4200 |
Material: DMC (Dough Moulding Compound)
Insert: Steel (zinc passivated)
Working temperature: (-) 40˚C to 135˚C
Mounting Arrangement:
Maximum width of Busbar (W) should be ( Top diameter of Support + 10 mm )
| Tightening Torque |
| H 625, H 630 |
90-125 kg cm |
| H 830, H 835, H 840 |
140- 250 kg cm |
| H 850, H 1040, H 1050 |
275 -330 kg cm |
| H 1250, H 1260 |
400- 550 kg cm |
