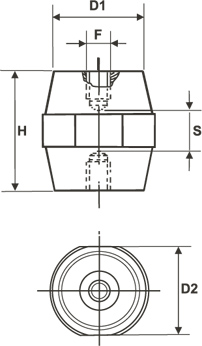

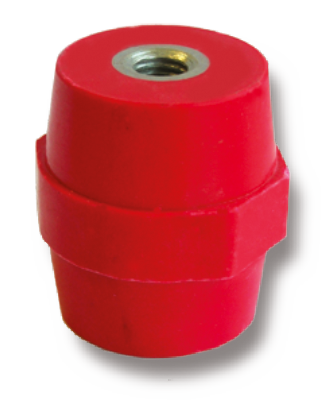

Standoff Insulators DB/P :

Code Height
H mm
Insert Dimensions

Operating

Voltage


      D1 mm D2 mm S mm
DB16/P 16 M3 13 14 6 380 V
    M4
DB20/P 20 M4 15 17 8 500 V
    M6
DB25/P 25,2 M5 15 19 9 600 V
    M6
DB30/P 30 M6 26 30 10 600 V
    M8
DB34/P 35 M6 28 32 10 1000 V
    M8
    M10
DB35/P 35,5 M6 35 41 10 1000 V
    M8
    M10
DB45/P 45 M6 35 41 15 1500 V
    M8
    M10
    M12
DB50/P 51 M8 29 36 20 2000 V
    M10
    M12
DB 65/P 63,5 M6 35 41 30 3000 V
    M8
    M10
    M12
DB75/P 76 M8 36 50 25 5000 V
    M10
    M12

Material: Polyglass polyester
Operating temperature: -40ºC ~ +130ºC
Fire reaction / Classe: UL94 – VO; HL2; EN 45545-2

Breaking charges: tolerance +/- 10%



Type   DB16 DB20 DB25 DB30 DB34 DB35 DB45 DB50 DB65 DB75
AC sufrace flashover voltage kV 3 4 7 8 10 10 12 12 15 25
AC internal flashover voltage kV 8 15 20 23 30 30 40 40 40 50
Tensile strength DN 100 150 300 500 800 1100 1200 850 1500 2300
Flexural strength DN 50 60 180 250 450 800 800 450 700 900
Compressive strength DN 500 600 2100 4400 6500 8000 8000 6800 8300 10000
Torsional stress DN x mm 0,4 0,4 3 3 5 9 10 6 6 10

1DN~1Kg
