| STEP SUPPORTS |
| Code |
Busbar |
Max L [mm] |
| |
(mm x mm x szt) |
at short circut current |
| |
|
10kA
1sec |
15kA
1 sec |
25 kA
1 sec |
35kA
1 sec |
50kA
1 sec |

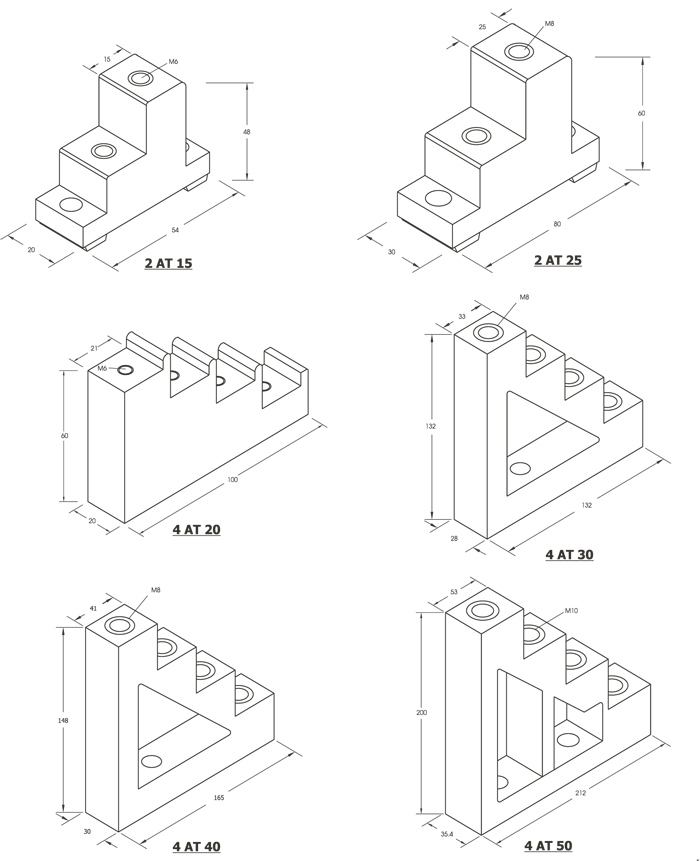

| 2AT 15 |
15 x 3 x 1 |
200 |
** |
** |
** |
** |
| 2AT 25 |
25 x 5 x 1 |
550 |
250 |
** |
** |
** |
| 4AT 20 |
20 x 5 x 1 |
490 |
220 |
** |
** |
** |
| 4AT 30 |
32 x 5 x 1 |
750 |
600 |
350 |
250 |
** |
| 4AT 40 |
40 x 6 x 1 |
750 |
600 |
320 |
250 |
** |
| 4AT 50 |
50 x 6 x 1 |
750 |
750 |
750 |
550 |
300 |

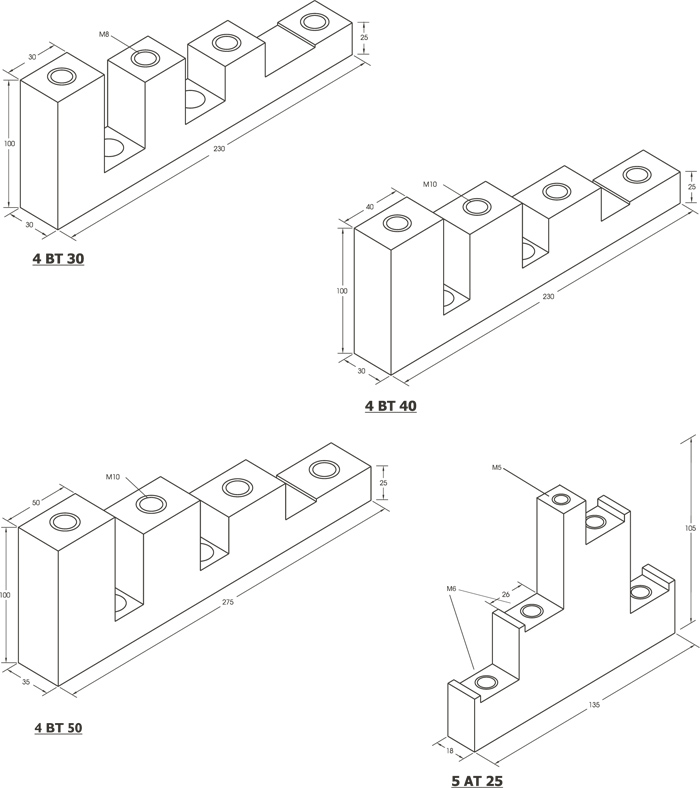

| 4BT 30 |
32 x 5 x 1 |
750 |
750 |
500 |
300 |
** |
| 4BT 40 |
40 x 6 x 1 |
750 |
750 |
500 |
300 |
250 |
| 4BT 50 |
50 x 6 x 1 |
750 |
750 |
600 |
450 |
320 |
| 5AT 25 |
25 x 5 x 1 |
200 |
120 |
** |
** |
** |
** not recomend
Max L: distance between centers of supports in mm
Material: DMC (Dough Moulding Compound)
Working temperature: (-) 40˚C to 135˚C

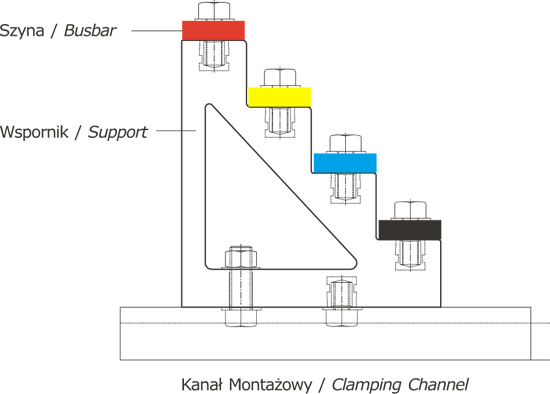

Mounting arrangement:
