Single pole busbar supports SP

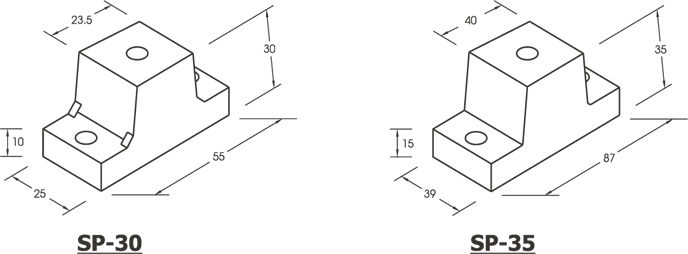

SINGLE POLE BUSBAR SUPPORTS SP
Code Busbar c-c (min.) Max L
  (mm x mm x pcs) mm for short circut current
      10kA 1sec 15kA 1 sec 20 kA 1 sec 25kA 1 sec
SP 30 25 x 5 x 1 80 500 200 130 **
SP 35 50 x 6 x 1 100 500 410 230 150

** not recomend
c-c (min.) –
minimum distance between centers of two adjacent phases
Max L - maximum distance between centers of supports in mm



Material: DMC or SMC
Working temperature: (-) 40˚C to 135˚C



Mounting arragement:
