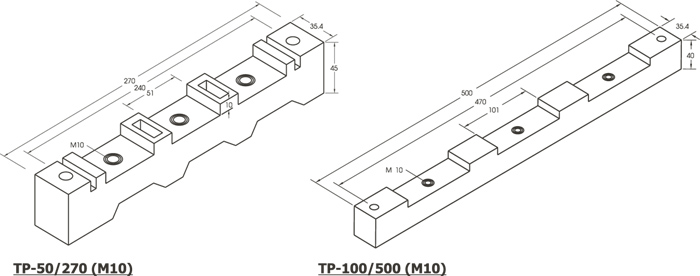

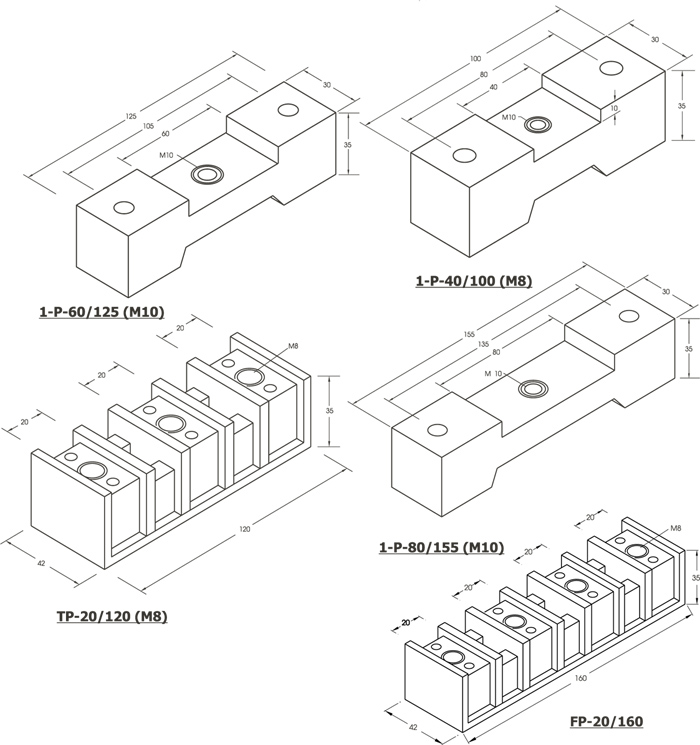

| SINGLE, THREE AND FOUR POLE SUPPORTS |
| Code |
Busbar |
c-c (min.) |
Max L |
| |
(mm x mm x pcs) |
mm |
for short circut current |
| |
|
|
25kA 1 sec |
35 kA 1 sec |
50 kA 1 sec |
| 1-P-40/100 |
40 x 6 x 1 |
120 |
600 |
400 |
** |
| |
40 x 5 x 2 |
120 |
550 |
350 |
** |
| 1-P-60/125 |
60 x 5 x 1 |
150 |
740 |
375 |
220 |
| |
60 x 5 x 2 |
150 |
700 |
350 |
200 |
| 1-P-80/155 |
80 x 5 x 1 |
170 |
700 |
430 |
210 |
| |
80 x 6 x 2 |
170 |
650 |
400 |
200 |
| TP-20/120 (M8) |
20 x 60 x 1 |
45 |
500 |
300 |
200 |
| TP-50/270 (M10) |
50 x 10 x 1 |
70 |
1000 |
700 |
330 |
| TP-100/500 (M10) |
100 x 10 x 1 |
141 |
1000 |
500 |
250 |
** not recomend
c-c (min.) – minimum distance between centers of two adjacent phases
Max L - maximum distance between centers of supports in mm
Material: DMC or SMC
Working temperature: (-) 40˚C to 135˚C
