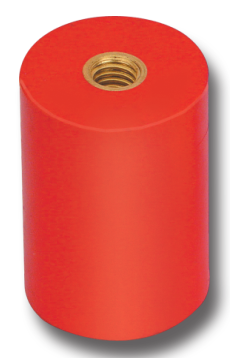

Izolatory nn walcowe CY zestawienie
| Kod |
Wysokość
H mm |
Gwint |
Wymiary |
Napięcie Pracy
(AC/DC) |
| |
|
|
R mm |
Hb mm |
|
| CY3030(M6) |
30 |
M6 |
30 |
9 |
1200/1600 |
| CY3030(M8) |
30 |
M8 |
30 |
9 |
1200/1600 |
| CY3030(M10) |
30 |
M10 |
30 |
9 |
1200/1600 |
| CY3040(M6) |
40 |
M6 |
30 |
12 |
1600/2200 |
| CY3040(M8) |
40 |
M8 |
30 |
12 |
1600/2200 |
| CY3040(M10) |
40 |
M10 |
30 |
12 |
1600/2200 |
| CY3050(M6) |
50 |
M6 |
30 |
12 |
2000/2800 |
| CY3050(M8) |
50 |
M8 |
30 |
17 |
2000/2800 |
| CY3050(M10) |
50 |
M10 |
30 |
17 |
2000/2800 |
| CY3060(M6) |
60 |
M6 |
30 |
12 |
2400/3300 |
| CY3060(M8) |
60 |
M8 |
30 |
17 |
2400/3300 |
| CY3060(M10) |
60 |
M10 |
30 |
17 |
2400/3300 |
| CY4040(M8) |
40 |
M8 |
40 |
12 |
1600/2200 |
| CY4040(M10) |
40 |
M10 |
40 |
12 |
1600/2200 |
Tworzywo: DMC
Gwint: Stal (ocynkowana)
Temperatura pracy: od - 40°C do 135°C
Sposób montażu:
Zalecana odległość między izolatorami : Nie powinna przekraczać 200 mm
